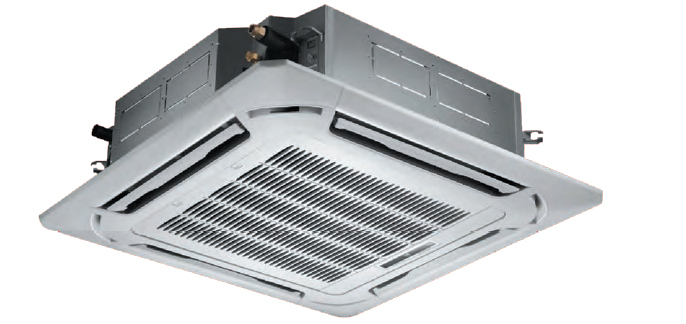

Trane Non-inverter (Cassette)
Be smart, Be lazy
Uniform Cooling for increased comfort with Trane's Cassette AC.
All-copper components Guarantees Long life your Air Conditions.
Trapeziform copper pipes Enables efficient cooling
360 degree airflow Uniform & Efficient cooling
Turbo Mode Better air-throw and faster cooling.
In build drain pump Lifts condensate water for easy drainage.
3 Dimensional screw fanLess resistance, increased air volume, better heat exchange.
Techinical Specification
| Specification |
Description |
Model |
TKT48KSTI |
TKS36KSXI |
TKR24KSXI |
TKR18KSXI |
Capicity |
Cooling |
Watts |
14,068 |
10,551 |
7,034 |
5,275 |
| Cooling |
BTU/Hr |
48,000 |
36,000 |
24,000 |
18,000 |
| Compressor/Refrigerigerant |
Type |
Twin Rotary/R22 |
Scroll/R22 |
Rotary/R22 |
Rotary/R22 |
Elec. Rating |
Power Supply |
Volt/Phase/Hz. |
380KV/50HZ/3Ph |
220-240V-50Hz,1Ph |
220-240V-50Hz,1Ph |
220-240V-50Hz,1Ph |
| Power Supply |
Volt/Phase/Hz. |
380V/50Hz/3Ph |
220-240V-50hz,1Ph |
220-240V-50hz,1Ph |
220-240-50Hz,1Ph |
| Power Input |
Watts |
4870 |
3940 |
2430 |
2110 |
| Running Current |
Amps |
9.0 |
17.2 |
10.6 |
9.2 |
Performance |
EER/COP |
W/W |
2.89 |
2.68 |
2.89 |
2.50 |
| Indoor air flow (Turbo/Hi Mi/Lo) |
CMH |
2000/1700/1480 |
1950/1650/1400 |
1250/1050/900 |
1000/820/700 |
| Indoor Noice |
dB |
48 |
48 |
39 |
33 |
Features |
Air Swing |
|
Auto |
Auto |
Auto |
Auto |
| Speed Testing |
|
3 Level |
3 Level |
3 Level |
3 Level |
| Display Type |
|
Bulb |
Bulb |
Bulb |
Bulb |
| Memory Backup |
|
Yes |
Yes |
Yes |
Yes |
| Sleep Mode |
|
Yes-Eco Mode |
Yes-Eco Mode |
Yes-Eco Mode |
Yes-Eco Mode |
| Dry Mode |
|
Yes |
Yes |
Yes |
Yes |
| Auto Mode |
|
Yes |
Yes |
Yes |
Yes |
| Child Lock |
|
Yes |
Yes |
Yes |
Yes |
| On/Off Timer |
|
Yes |
Yes |
Yes |
Yes |
| Filters |
Bacteria Filter |
|
Yes |
Yes |
Yes |
Yes |
Weight & Dimensions |
IDU Size (Net) |
(W*H*D) mm |
840*840*245 |
840*840*245 |
840*840*205 |
840*840*205 |
| Panel Size (Net) |
(W*H*D) mm |
950*950*55 |
950*950*55 |
950*950*55 |
950*950*55 |
| ODU Size (Net) |
(W*H*D) mm |
990*965*345 |
900*860*315 |
845*700*320 |
760*590*285 |
| IDU Weight (Net/Gross) |
Kg |
27/30.5 |
24.5/30 |
23/27 |
22.5/26 |
| ODU Weight (Net/Gross) |
Kg |
76/86 |
79/83 |
48/52 |
35/38 |
